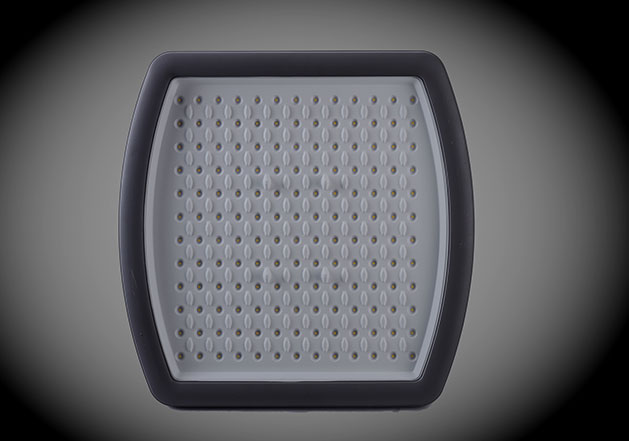

Explosion Proof Led Lighting For Paint Booth
Explosion Proof Led Lighting For Paint Booth
Led Spray Booth Lights
Explosion Proof Led Canopy Lighting
Explosion Proof Led Work Lights
Explosion Proof Led Lighting For Paint Booth

Explosion Proof Led Flood Light Class 1 Div 2 Zone 2 SHF-II Series

Advantages

SHF-II series atex floodlight is one of intrinsically safe lighting with bright led explosion lamp to be used for explosion proof led flood light for class 1 div 2 whose hazard class division is not very high in led flood light hazardous area such as paint booth lights, gas station lights. Its class divisions can be also class 2 division 1 and class 2 division 2 as dust explosion proof lighting and zone of light can be applicable for atex rating zone 1 and zone 2.

Features
Selection Table
Data Sheet
Mounting

Features

Explosion Proof Flood Light SHF-II Series

01

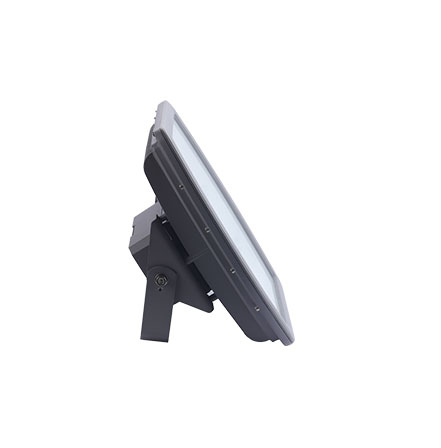

Thin housing and light-weight reducing work force

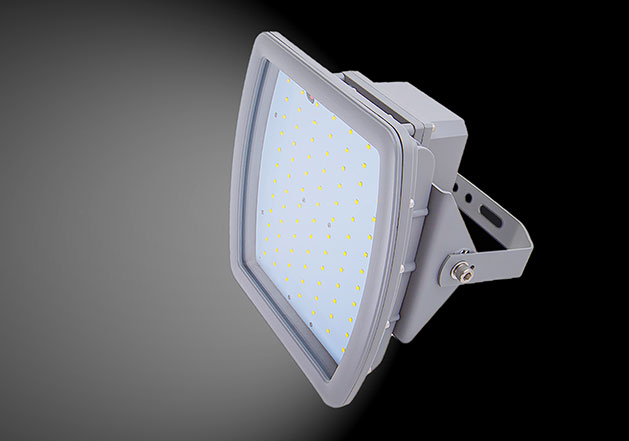

Explosion Proof Led Lighting For Paint Booth
02

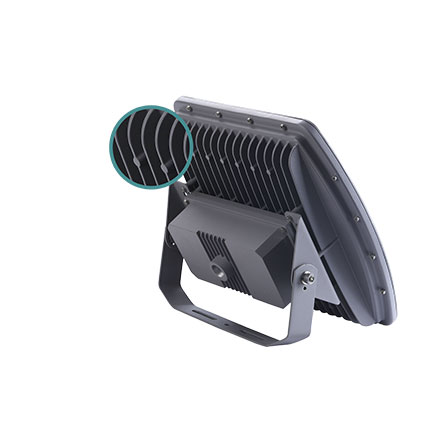

Heat control fins for specialized led driver for durable usage

Led Spray Booth Lights
03

Air convection for both sides to decrease the surface temperature

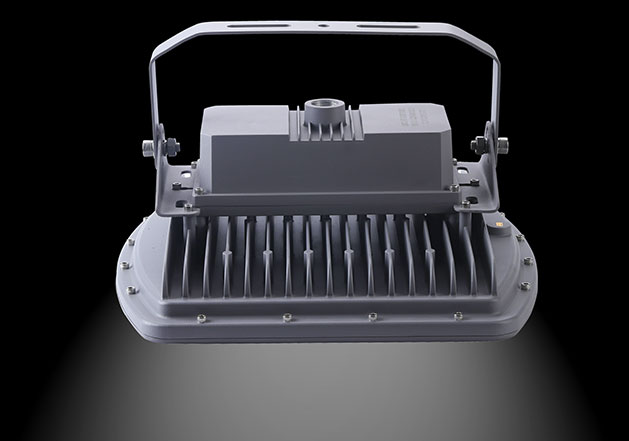

Explosion Proof Led Canopy Lighting
04

Dense led chips units to lessen the negative break-down influence

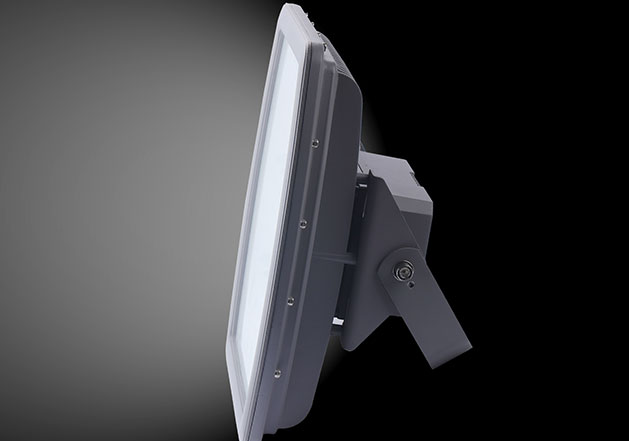

Explosion Proof Led Work Lights

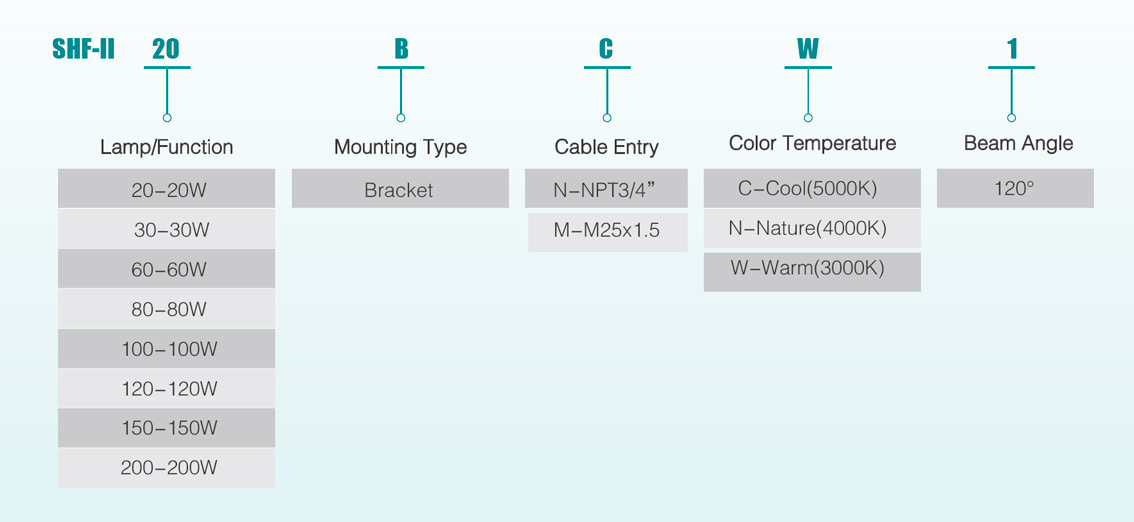

Selection Table

Explosion Proof Flood Light SHF-II Series

ModelLumensWattageLumens per WattEquivalent HID Luminaire
SHF-II-20W240020W12070-100W
SHF-II-30W360030W120100-150W
SHF-II-60W720060W120320-400W
SHF-II-80W960080W120400W
SHF-II-100W12000100W120400-600W
SHF-II-120W14400120W120600-750W
SHF-II-150W18000150W120750W
SHF-II-180W21600180W120750-1000W


Selection Table of Explosion Proof Led Flood Light SHF-II Series

Data Sheet

Explosion Proof Flood Light SHF-II Series

Compliance

IEC Standard
IEC60079-0, IEC60079-7, IEC60079-31, IEC60598-2-1
Ex eb IIC T6/T5 Gc
Ex tb IIIC T100℃ Db IP66
Zone 1, Zone 2
Zone 21, Zone 22
EU Standard
EN60079-0, EN60079-7, EN60079-31, EN60598-2-1
ex-high-bay-lighting.jpgII 2 G Ex eb IIC T6/T5 Gb
ex-high-bay-lighting.jpgII 2 D Ex tb IIIC T100℃ Db IP66
Zone 1, Zone 2
Zone 21, Zone 22
NEC & CEC Standard
Class I, Div.2, Group A, B, C, D
Class II, Div.1, Group E, F, G
Class III
UL Standard
UL844, UL1598, UL1598A
CSA Standard
CSA C22.2 No.137
Rated Voltage100-277V AC 50/60Hz
200-480V AC 50/60Hz
Wattage(W)20W30W60W80W100W120W150W180W
Lumens(LM)240036007200960012000144001800021600
Color Temperature5000K/4000K/3000K
IP GradeWet Locations, Type 4X, IP66
Ambient Temperature-40℃~ +55℃ /-40°F ~ +131°F
Cable EntryNPT 3/4" or M25X1.5 (adaptor for M20x1.5, NPT 1" , NPT1 1/2" )
TerminalsTerminal blocks ≤ 2.5mm², cable diameter 10-14mm
Mounting TypeB-Bracket
Beam Angle120°  / 90° / 60° / 40°


Mounting

Explosion Proof Flood Light SHF-II Series

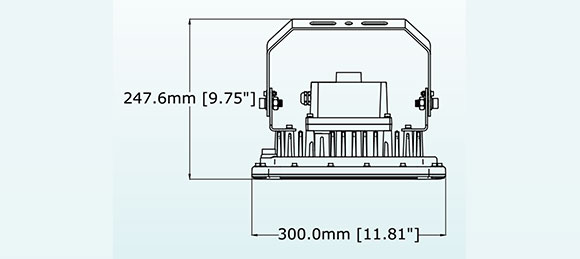

Mounting of Explosion Proof Led Flood Light SHF-II Series

Bracket Type
