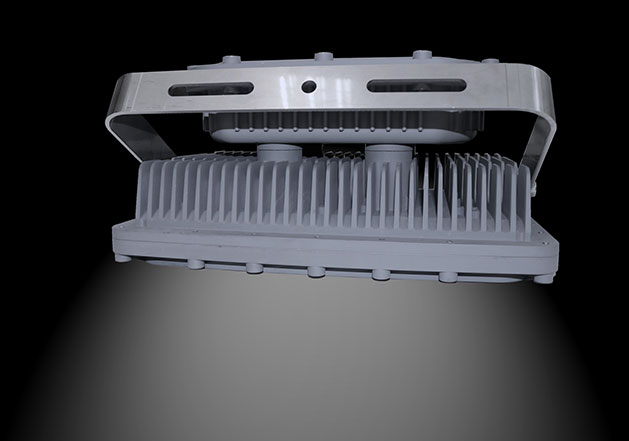

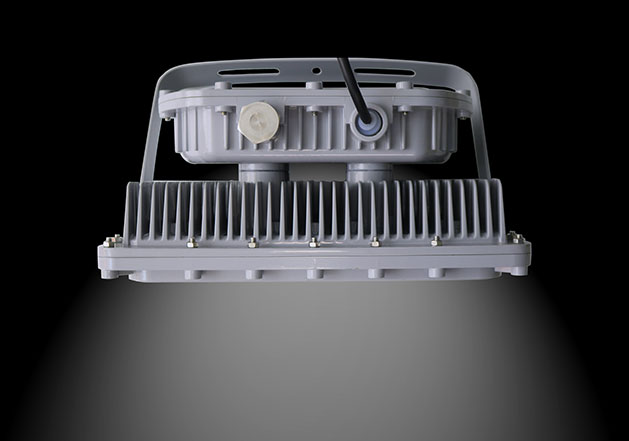

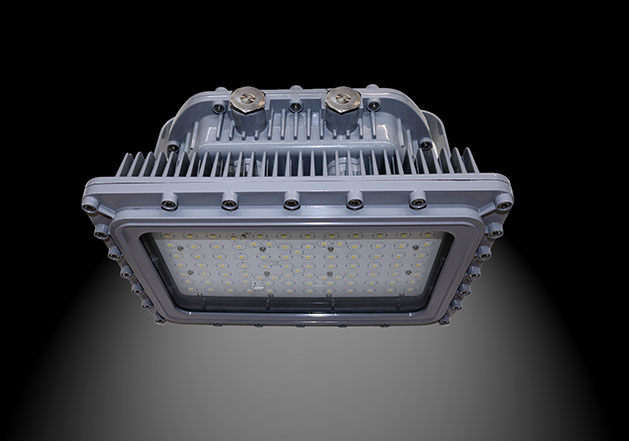

Explosion Proof Led Flood Light Class 1 Div 1 Zone 1 SHF-IA Series

Name: Explosion Proof Led Flood Light Class 1 Div 1 Zone 1 SHF-IA Series
Brand: SUREALL TECHNOLOGY LIMITED

Advantages

Class I, Div.1, Groups A, B, C, D

Ex tb IIIC T80℃ Db IP66

Zone 1,Zone 2

Class II, Div. 1, Groups E,F,G

Zone 21, Zone 22

-40℃ ~ +55℃

Class III

Type 4X，IP66

Ex d IIC T6 Gb

LED 20W-200W, 140lm/W, 2900K-5000K

Specification 

Aiming to develop a perfect class 1 div 1 explosion proof flood lighting SHF-IA series, SUREALL optimize the flame proof housing structure to create an updated explosion proof lighting with stable heat dissipation fins and perfect led explosion lamp for flame proof light family. It can also used as explosion proof spot light, paint booth lights, gas station lights and flame proof street light. Hazard class division can be extended to class 1 div 2, class 2 division 1 and class 2 division 2 for hazardous locations lighting and zone 1 and zone 2 for atex rating.

 Features

Selection Table

Data Sheet

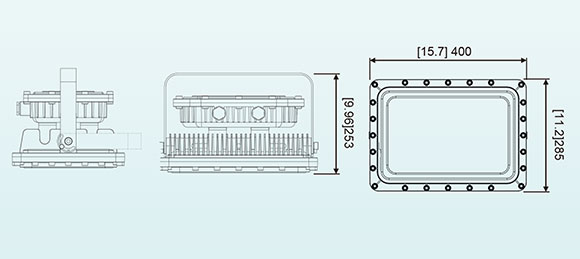

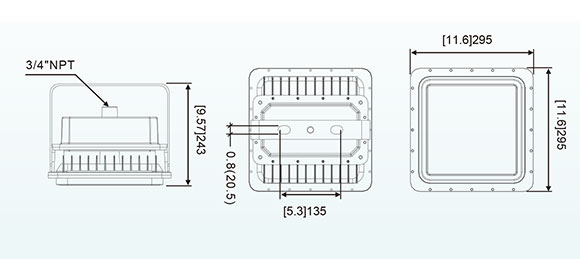

Mounting

Features
Explosion Proof Flood Light SHF-IA Series

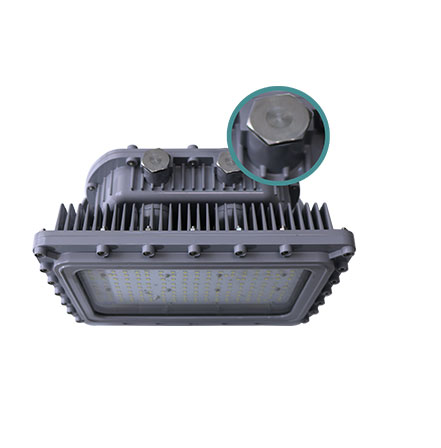

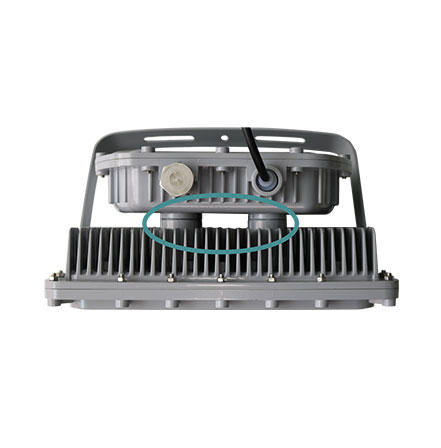

Solid encapsulation separation for led driver and led lamp housing

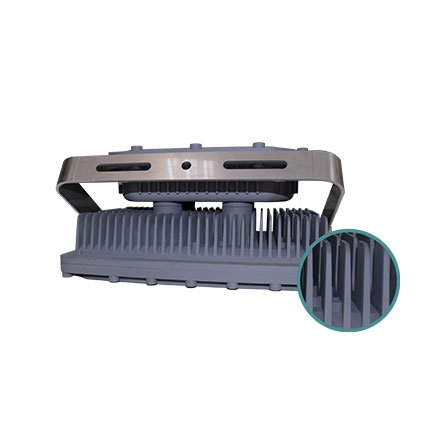

Integrated die-cast moduling for dense heat escaping fins

NPT and metric thread standard for coming cables

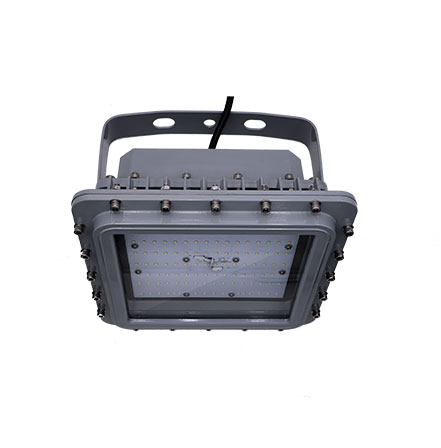

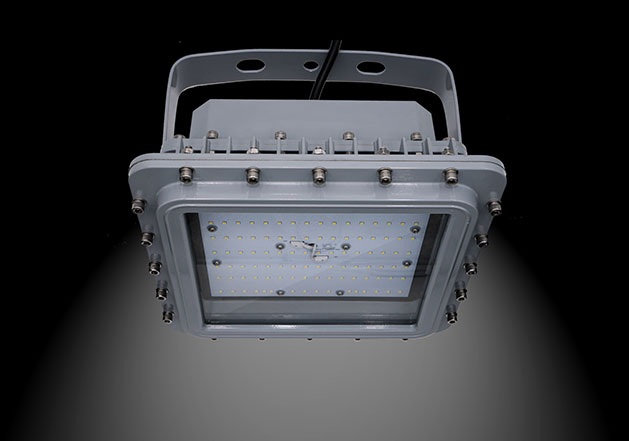

Flat glass without lens to wider lighting areas

Selection Table
Explosion Proof Flood Light SHF-IA Series

Model	Lumens	Wattage	Lumens per Watt	Equivalent HID Luminaire
SHF-IA-20W	2800	20W	140	70-100W
SHF-IA-40W	5600	40W	140	100-150W
SHF-IA-60W	8400	60W	140	175-250W
SHF-IA-80W	11200	80W	140	320-400W
SHF-IA-100W	14000	100W	140	400W
SHF-IA-120W	16800	120W	140	400-600W
SHF-IA-150W	21000	150W	140	600-750W
SHF-IA-200W	28000	200W	140	750-1000W

Selection Table of Explosion Proof Led Flood Light SHF-IA Series

Data Sheet
Explosion Proof Flood Light SHF-IA Series

Compliance	IEC Standard IEC60079-0, IEC60079-1, IEC60079-31, IEC60598-2-1 Ex d IIC T6 Gb Ex tb IIIC T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-1, EN60079-31,EN60598-2-1 II 2 G Ex d IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class I, Div. 1, Group A, B, C, D Class II, Div. 1, Groups E, F, G Class III
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Rated Voltage	100-277V AC 50/60Hz 200-480V AC 50/60Hz
Wattage(W)	20W	40W	60W	80W	100W	120W	150W	200W
Lumens(LM)	2800	5600	8400	11200	14000	16800	21000	24000
Color Temperature	2900K-5000K
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry	NPT 3/4" or M25X1.5 (adaptor for M20x1.5, NPT 1", NPT1 1/2")
Terminals	Terminal blocks ≤ 2.5mm², cable diameter 10-14mm
Mounting Type	Bracket (Possible wall, ceiling, and block mounting with adjustable angle)
Beam Angle	120° / 90° / 60° / 40°
