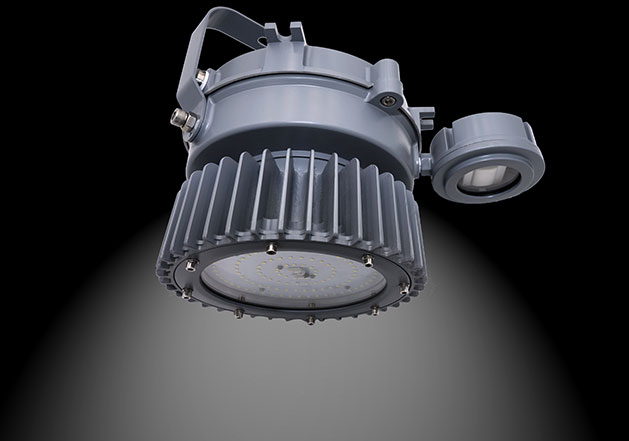

C1d2 Lighting

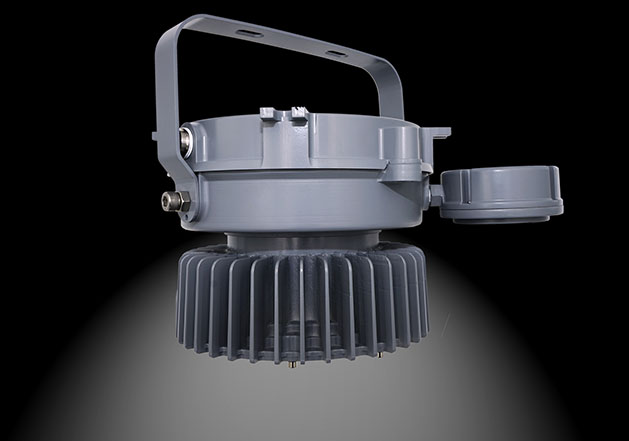

Class 1 Div 2 Light Fixture

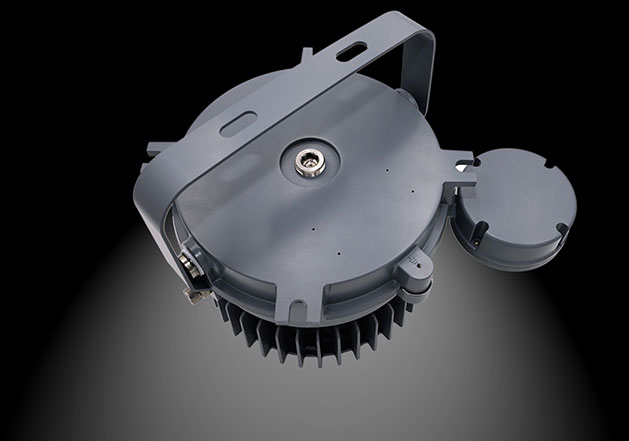

Class 1 Div 2 Strobe Light

Explosion Proof Led High Bay Lights Class 1 Div 2 Zone 2 SVM Series

Advantages

SVM lighting is a kind of intrinsically safety lighting with high lumens led explosion lamp among antique explosion proof lighting. Lighting zone of this explosion proof led lights is limited to class 1 luminaire, saying class 1 div 2 light fixture, and zone 2 led lighting. It is widely used for explosion proof high bay lighting, explosion proof area lighting, paint booth lights, explosion proof trouble light and explosion proof recessed lighting as a champ up to most popular model for hazardous locations lighting environment.

Features
Selection Table
Data Sheet
Mounting

Features

Explosion Proof High Bay Lighting SVM Series

01

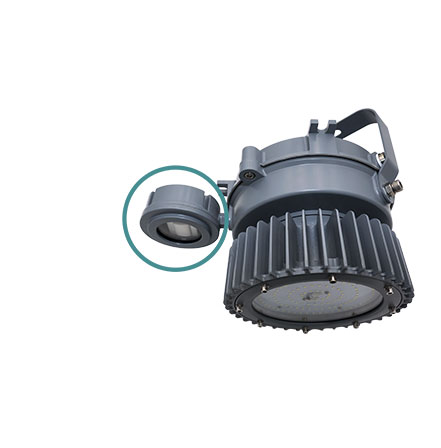

Emergency lighting functions with long lasting battery

High Bay Retrofit
02

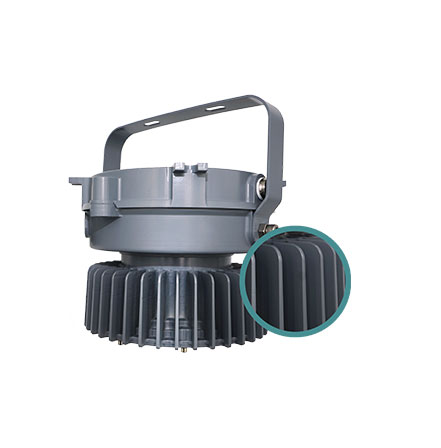

Full exchanging of thermal energy with air for low heat

Led High Bay Lighting Retrofit
03

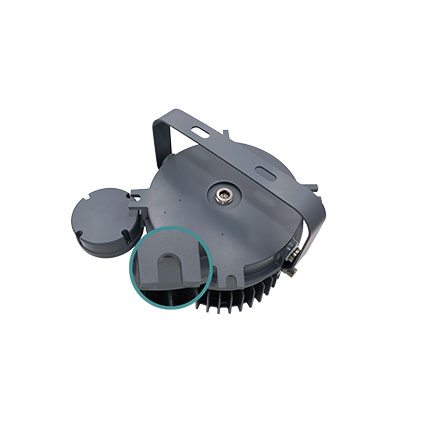

Two direct ceiling mounting nicks no need extra accessories

High Bay Sodium Lights
04

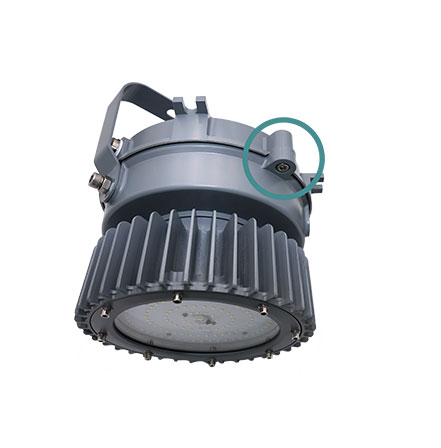

Patented hinge design to keep the body when maintenance

Luminaire High Bay Led

Selection Table

Explosion Proof High Bay Lighting SVM Series

ModelLumensWattageLumens per WattEquivalent HID Luminaire
SVM-20W280020W14070-100W
SVM-40W560040W140100-150W
SVM-60W840060W140150-175W
SVM-80W1120080W140175-250W
SVM-100W14000100W140320-400W
SVM-150W21000150W140400-600W
SVM-200W28000200W140600-750W


Selection Table of Explosion Proof High Bay Lighting SVM Series

Data Sheet

Explosion Proof High Bay Lighting SVM Series

Compliance

IEC Standard
IEC60079-0, IEC60079-15
Ex nR IIC T6 Gc
Ex tb IIIC T80℃ Db IP66
Zone 2
Zone 21, Zone 22
EU Standard
EN60079-0, EN60079-15
ex-high-bay-lighting.jpgII 2 G Ex nR IIC T4 Gc
ex-high-bay-lighting.jpgII 2 D Ex tb IIIC T80℃ Db IP66
Zone 2
Zone 21, Zone 22
NEC & CEC Standard
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
UL Standard
UL844, UL1598, UL1598A
CSA Standard
CSA C22.2 No.137
Rated Voltage100-277V AC 50/60Hz
200-480V AC 50/60Hz
Wattage(W)20W40W60W80W100W150W200W
Lumens(LM)28005600840011200140002100028000
Color Temperature5000K/4000K/2700K
IP GradeWet Locations, Type 4X, IP66
Ambient Temperature-40℃~ +55℃ /-40°F ~ +131°F
Cable EntryNPT 3/4" or M25X1.5 (adaptor for M20x1.5, NPT 1", NPT1 1/2")
TerminalsTerminal blocks ≤ 2.5mm², cable diameter 10-14mm
Mounting TypeCeiling / Pendant / Wall
Beam Angle120°  / 90° / 60° / 40°


Mounting

Explosion Proof High Bay Lighting SVM Series

Mounting of Explosion Proof High Bay Lighting SVM Series

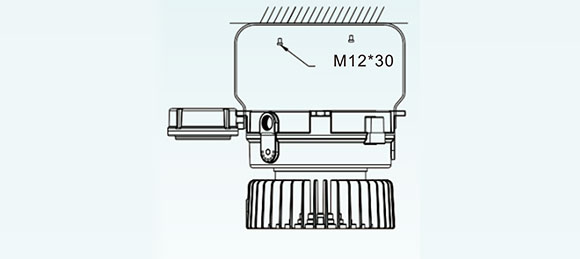

C-Ceiling Type

Mounting of Explosion Proof High Bay Lighting SVM Series

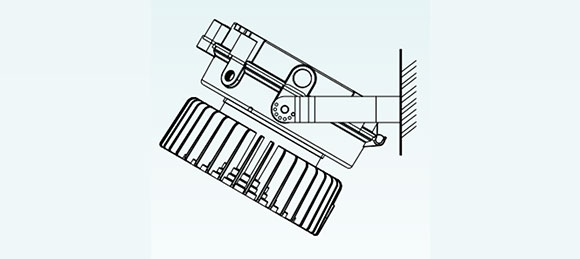

W-Wall Type

Mounting of Explosion Proof High Bay Lighting SVM Series

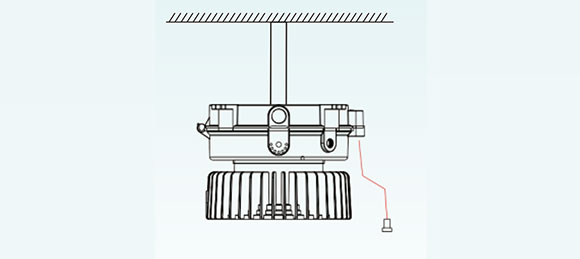

P-Pendant Type
