Explosion Proof Led Linear Fluorescent Lights Class 1 Div 2 Zone 2 SLL-II Series

Name: Explosion Proof Led Linear Fluorescent Lights Class 1 Div 2 Zone 2 SLL-II Series
Brand: SUREALL TECHNOLOGY LIMITED

Advantages

Class Ⅰ, Division 2, Groups A, B, C, D

Zone 2

Class Ⅱ, Division 1, Groups E, F, G

Zone 21, Zone 22

-40℃ ~ +55℃

Class Ⅲ

Type 4X，IP66

Ex ec IIC T6/T5 Gb

LED 20W- 80W, 140lm/W, 3000K-5000K

Ex tb IIIC T80/100℃ Db IP66

Advantages of Explosion Proof Led Tube Light

Specification 

Born for class 1 div 2 fluorescent fixture, SLL-II series is a very critical explosion proof fluorescent lighting used for areas requesting hazardous location lighting covering paint booth lights and gas station lights. Led explosion lamp, Ex e aluminum tube housing and intrinsically safe electrical circuit form an atex rating explosion proof lighting for lighting zone as zone 1 and zone 2 and hazard class division class 1 div 2, class 2 division 1 and class 2 division 2.

 Features

Selection Table

Data Sheet

Mounting

Features
Explosion Proof Fluorescent Lighting SLL-II Series

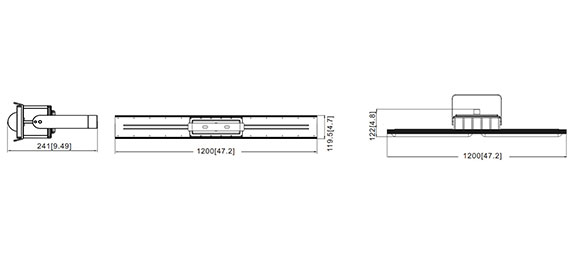

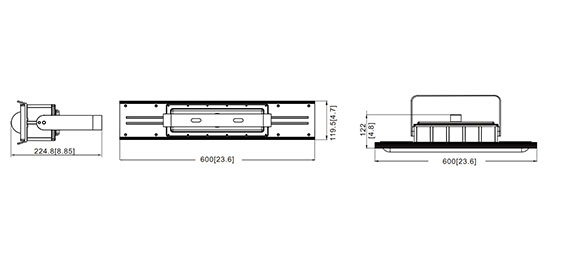

One housing for 2 feet and double housing for 4 feet tubes

Separate terminal chamber for fast cable connection

Oyster white diffuser for soft light and anti glaring effect

Light-weight for labor-saving moving

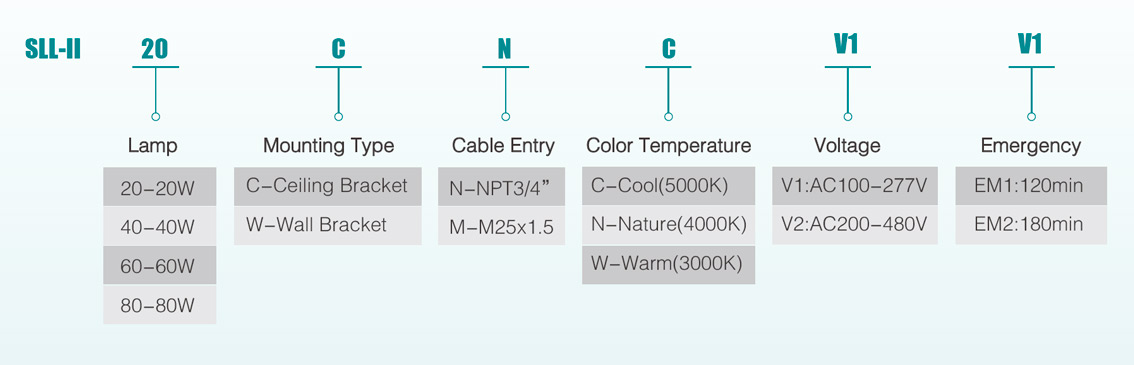

Selection Table
Explosion Proof Fluorescent Lighting SLL-II Series

Model	Lumens	Wattage	Lumens per Watt	Equivalent HID Luminaire
SLL-II-20W	2800	20W	140	70-100W
SLL-II-40W	5600	40W	140	100-150W
SLL-II-60W	8400	60W	140	175-250W
SLL-II-80W	11200	80W	140	320-400W

Selection Table of Explosion Proof Fluorescent Light SLL-II Series

Data Sheet
Explosion Proof Fluorescent Lighting SLL-II Series

Compliaces	IEC Standard IEC60079-0, IEC60079-7, IEC60079-31, IEC60598-2-1 Ex ec IIC T6/T5 Gc Ex tb IIIC T80/100℃ Db IP66 Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-7, EN60079-31, EN60598-2-1 II 3 G Ex ec IIC T6/T5 Gb II 2 D Ex tb IIIC T80/100℃ Db IP66 Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class Ⅰ, Division 2, Groups A, B, C, D Class Ⅱ, Division 1, Groups E, F, G Class Ⅲ
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Rated Voltage	100-277V AC 50/60Hz 277-480V AC 50/60Hz
Wattage(W)	20W	40W	60W	80W
Lumens(LM)	2800	5600	8400	11200
Color Temperature	3000K-5000K
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry	NPT 3/4” or M25X1.5
Terminals	Terminal blocks ≤ 2.5mm², cable diameter 10-14mm

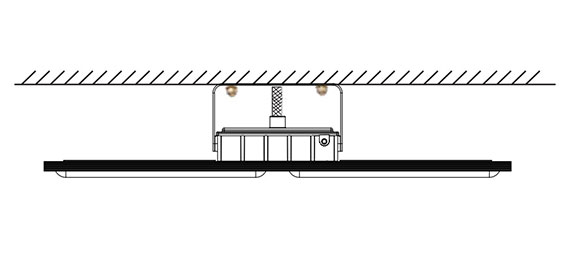

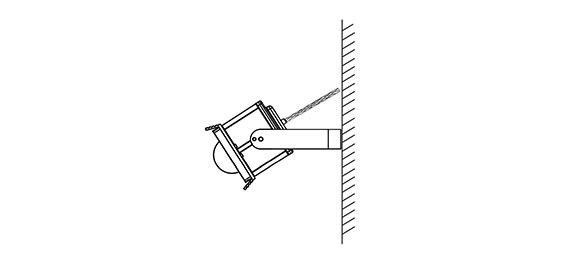

Mounting Type	Ceiling Bracket / Wall Bracket
Beam Angle	120° / 90° / 60° / 40°
