Explosion Proof Led Linear Fluorescent Lights Class 1 Div 2 Zone 2 SLe Series

Advantage

Being the biggest market needs products for explosion proof lighting, SLe series is a traditional explosion proof fluorescent lighting with GRP housing and T8 explosion lamp which is a proper solution for paint booth lights and gas station canopy lights, SUREALL introduce the latest led strips explosion lamp to develop a class 1 div 2 fluorescent fixture to innovate the energy-saving explosion proof lighting, explosion proof led lights and explosion proof string lights for project of oil and gas lighting. Atex rating zone 1, its hazard class division can be class 1 div 2, class 2 division 1 and class 2 division 2.

Features
Selection Table
Data Sheet
Mounting

Features

Explosion Proof Led Linear Fluorescent Lights SLe Series

01

LED strip lamp tube for replacement for T8 lamp

Explosion Proof Fluorescent Light
02

Simple ceiling bracket for easy installation

Explosion Proof Tube Light
03

High quality polycarbonate diffuser to resist 7J impact

Flameproof Tube Light
04

Explosion proof plastic cable glands for safe cabling

Flameproof Tube Light Price

Selection Table

Explosion Proof Led Linear Fluorescent Lights SLe Series

ModelLumensWattageLumens per WattEquivalent HID Luminaire
SLe-T-1x18W1530T8 1x18W8570W
SLe-T-2x18W3060T8 2x18W8570-100W
SLe-T-1x36W3060T8 1x36W8570-100W
SLe-T-2x36W6120T8 2x36W85100-150W
SLe-L-1x9W1170LED 1x9W13070W
SLe-L-2x9W2340LED 2x9W13070-100W
SLe-L-1x18W2340LED 1x18W13070-100W
SLe-L-2x18W4680LED 2x18W140100-150W
SLe-S-1x20W2800LED 20W14070-100W
SLe-S-1x30W4200LED 30W140100W
SLe-S-2x15W4200LED 30W140100W
SLe-S-1x40W5600LED 40W140100-150W
SLe-S-2x20W5600LED 40W140100-150W
SLe-S-2x30W8400LED 60W140175-250W
SLe-S-2x40W11200LED 80W140320-400W

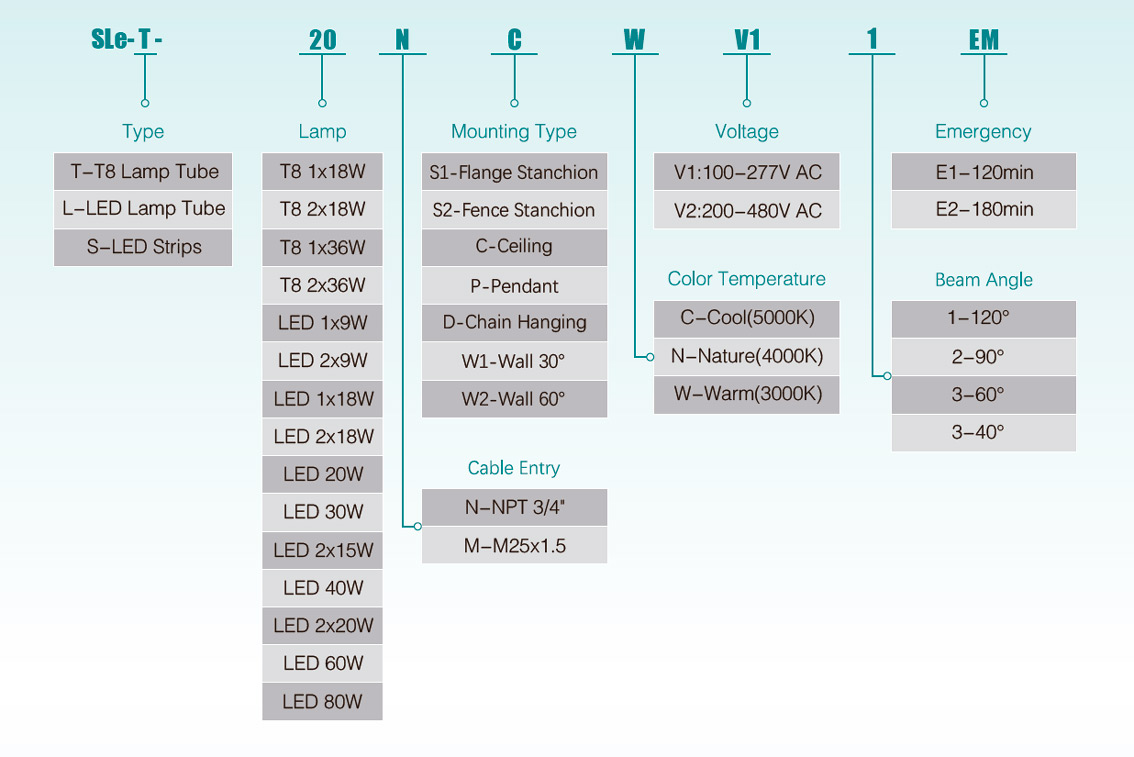

Explosion Proof Fluorescent Light SLe Series Selection Table

Data Sheet

Explosion Proof Led Linear Fluorescent Lights SLe Series

Compliance

IEC Standard
IEC60079-0, IEC60079-1,IEC60079-7, IEC60079-18, IEC60079-31
Ex eb mb db IIC T5/T6 Gb
Ex tb IIIC T95℃/T85℃ Db IP66
Zone1, Zone 2
Zone 21, Zone 22
EU Standard
EN60079-0, EN60079-1, EN60079-7, EN60079-18, EN60079-31
ex-high-bay-lighting.jpgII 2 G Ex eb mb db IIC T5/T6 Gb
ex-high-bay-lighting.jpgII 2 D Ex tb IIIC T95℃/T85℃ Db IP66
Zone1, Zone 2
Zone 21, Zone 22
NEC & CEC Standard
Class Ⅰ, Division 2, Groups A, B, C, D
Class Ⅱ, Division 2, Groups F, G
Class Ⅲ
UL Standard
UL844, UL1598, UL1598A
CSA Standard
CSA C22.2 No.137
Rated Voltage100-277V AC 50/60Hz
200-480V AC 50/60Hz
Wattage(W)T8 1x18WT8 2x18WT8 1x36WT8 2x36WLED 1x9WLED 2x9WLED 1x18WLED 2x18W
Lumens(LM)15303060306061201170234023404680
Wattage(W)LED 1x20WLED 30WLED 2x15WLED 40WLED 2x20WLED 2x30WLED 2x40W
Lumens(LM)28004200420056005600540011200
Color Temperature5000K/4000K/2700K
IP GradeWet Locations, Type 4X, IP66
Ambient Temperature-40℃~ +55℃ /-40°F ~ +131°F
Cable EntryNPT 3/4” or M25X1.5
TerminalsTerminal blocks ≤ 2.5mm², cable diameter 10-14mm
Mounting TypeFlange Stanchion / Fence Stanchion / Ceiling / Pendant / Chain Hanging / Wall 30° / Wall 60°
Beam Angle120°  / 90° / 60° / 40°


Mounting

Explosion Proof Led Linear Fluorescent Lights SLe Series

Mounting of Explosion Proof Fluorescent Light SLe Series

SLe(20W-30W)

Mounting of Explosion Proof Fluorescent Light SLe Series

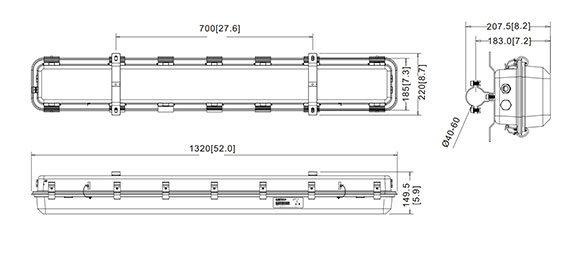

SLe(40W-60W)

Mounting of Explosion Proof Fluorescent Light SLe Series

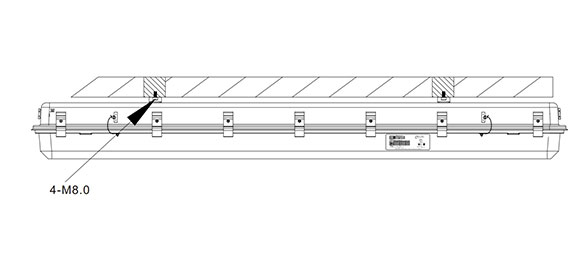

C-Ceiling Type

Mounting of Explosion Proof Fluorescent Light SLe Series

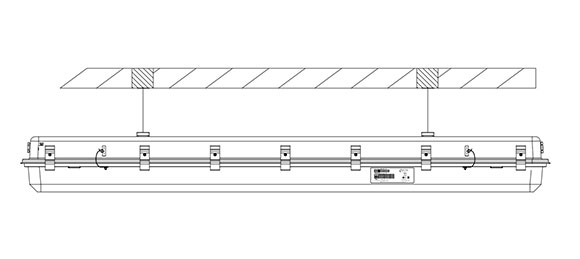

D-Chain Type

Mounting of Explosion Proof Fluorescent Light SLe Series

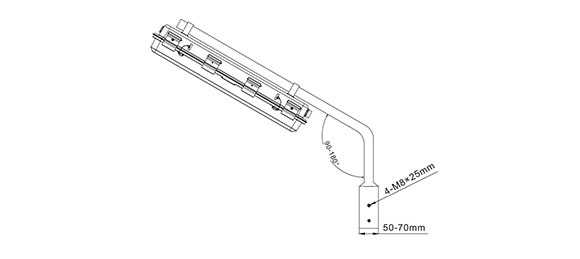

S-Pole Type
