Portable Explosion Proof Lighting
Portable Explosion Proof Lighting

Medium Intensity Aircraft Warning Light AWL-M Series

Advantages

Valued light intensity can reach up to 2000cd, medium-intensity aircraft warning light AWL-M series have the widest application range for tall structures as warning lights for air planes. Middle intensity led is suitable for middle height building such as tower cranes, wind turbine generator set, high mast pole, iron tower for electrical power, communication and microwave. This aviation light are worked as aviation light, obstruction lights, aviation light for towers, led obstruction light, tower obstruction light, faa light, airport obstructer lights.

Features
Selection Table
Data Sheet
Mounting

Features

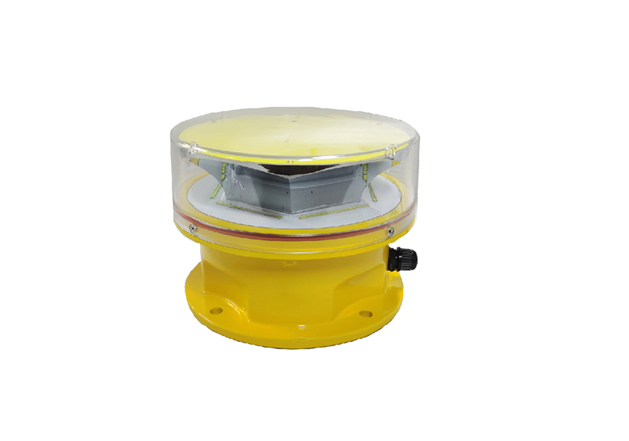

Medium Intensity Aircraft Warning Light AWL-M Series

01

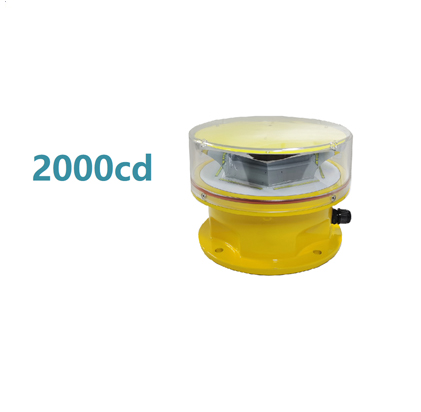

Medium intensity light up to 2000cd for top of medium height obstruction

Aircraft Warning Lights Price

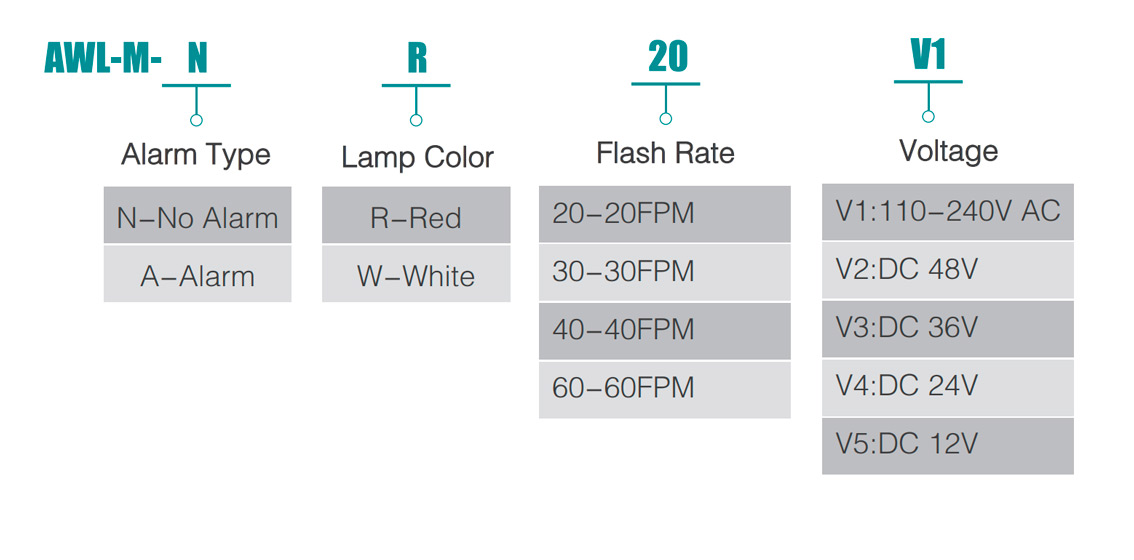

Selection Table

Medium Intensity Aircraft Warning Light AWL-M Series

Medium Intensity Aircraft Warning Light AWL-M Series

Data Sheet

Medium Intensity Aircraft Warning Light AWL-M Series

Rated   Voltage110-240V AC 50/60Hz
    DC 48/36/24/12V
Wattage(W)20W
Intensity2000cd
Horizontal   Output(degrees)360
Vertical   Divergence(degrees)3
Flash   Characteristics40-60 flashes per minuite
IP GradeWet Locations, Type 4X, IP66
Ambient   Temperature-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry3/4 inch pipe thread as standard,1inch as   option
Mounting190×190×θ12
Dimension(mm)&Weight(Kg)229×229×168mm, 3Kg

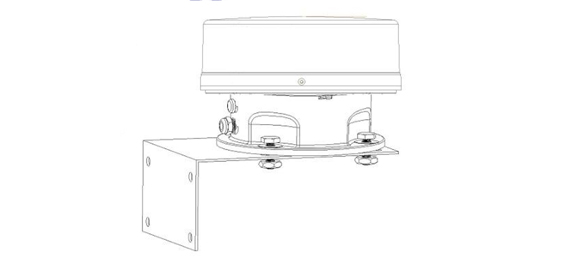

Mounting

Medium Intensity Aircraft Warning Light AWL-M Series

Medium Intensity Aircraft Warning Light AWL-M Series

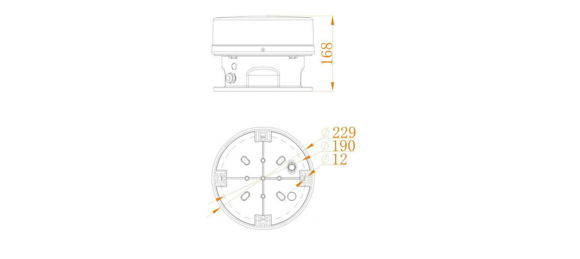

Dimension

Medium Intensity Aircraft Warning Light AWL-M Series

Mounting
